Last updated：2021-09-14 16:17:54
If a client requests an object that does not exist in a bucket, KS3 can obtain the object from the origin server based on back-to-origin rules. KS3 supports mirroring-based back-to-origin and redirection-based back-to-origin to meet your requirements for hot data migration and redirection of specific requests.

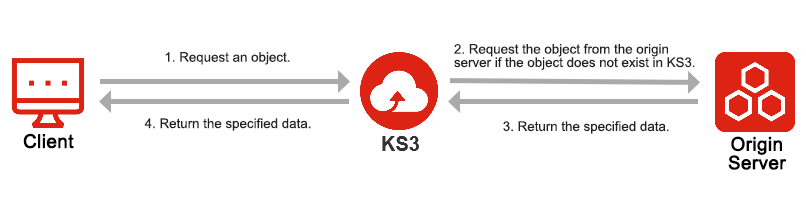

If a client calls the GET Object operation to request an object that does not exist in a bucket, KS3 requests the object from the origin server. After KS3 obtains the object, KS3 saves the object to the bucket and returns the object to the client, as shown in the following figure.
The mirroring-based back-to-origin service is used to seamlessly migrate data to KS3. For example, you have a service running on your self-built origin servers or other cloud products. As your business grows, you need to migrate data to KS3 without interrupting the service. In this case, you can use the mirroring-based back-to-origin service to ensure normal business operation during data migration.
Trigger of mirroring-based back-to-origin
If a client calls the GET Object operation to request an object that does not exist in a bucket, and mirroring-based back-to-origin rules are configured for the object, mirroring-based back-to-origin is triggered when a mirroring-based back-to-origin rule is met.
Rules for returning request failures
If the origin server returns the HTTP status code 404, indicating that the object does not exist on the origin server, KS3 also returns the HTTP status code 404 to the client. If the origin server returns an HTTP status code other than 404 or 200, indicating failures to obtain the object due to reasons such as network errors, KS3 returns the HTTP status code 424 to the client with the error code of MirrorFailed. If the original server returns the HTTP status code 3xx (301 or 302), KS3 determines whether to obtain the object by following the 3xx redirect request based on back-to-origin rules.
Object update rule
After KS3 obtains an object from the origin server and stores it in a bucket, KS3 does not update the object stored in the bucket when the source object is updated on the origin server.
Metadata of the object obtained from the origin server
Content-Type Content-Disposition Cache-Control Expires

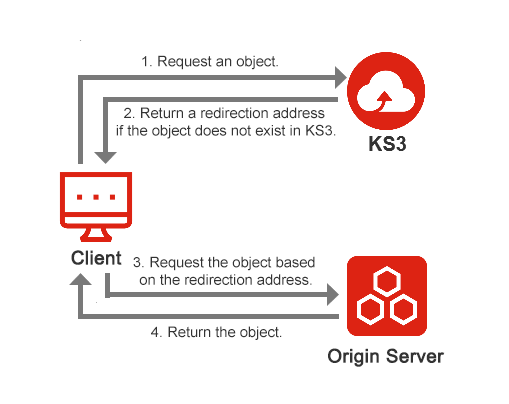

If a client requests an object that does not exist in a bucket, KS3 returns a 3xx redirect request to the client based on the redirection-based back-to-origin configuration, as shown in the following figure.
Locationvalue in the 302 redirect request.
