Configure advanced back-to-origin

Last updated:2020-11-26 19:50:33

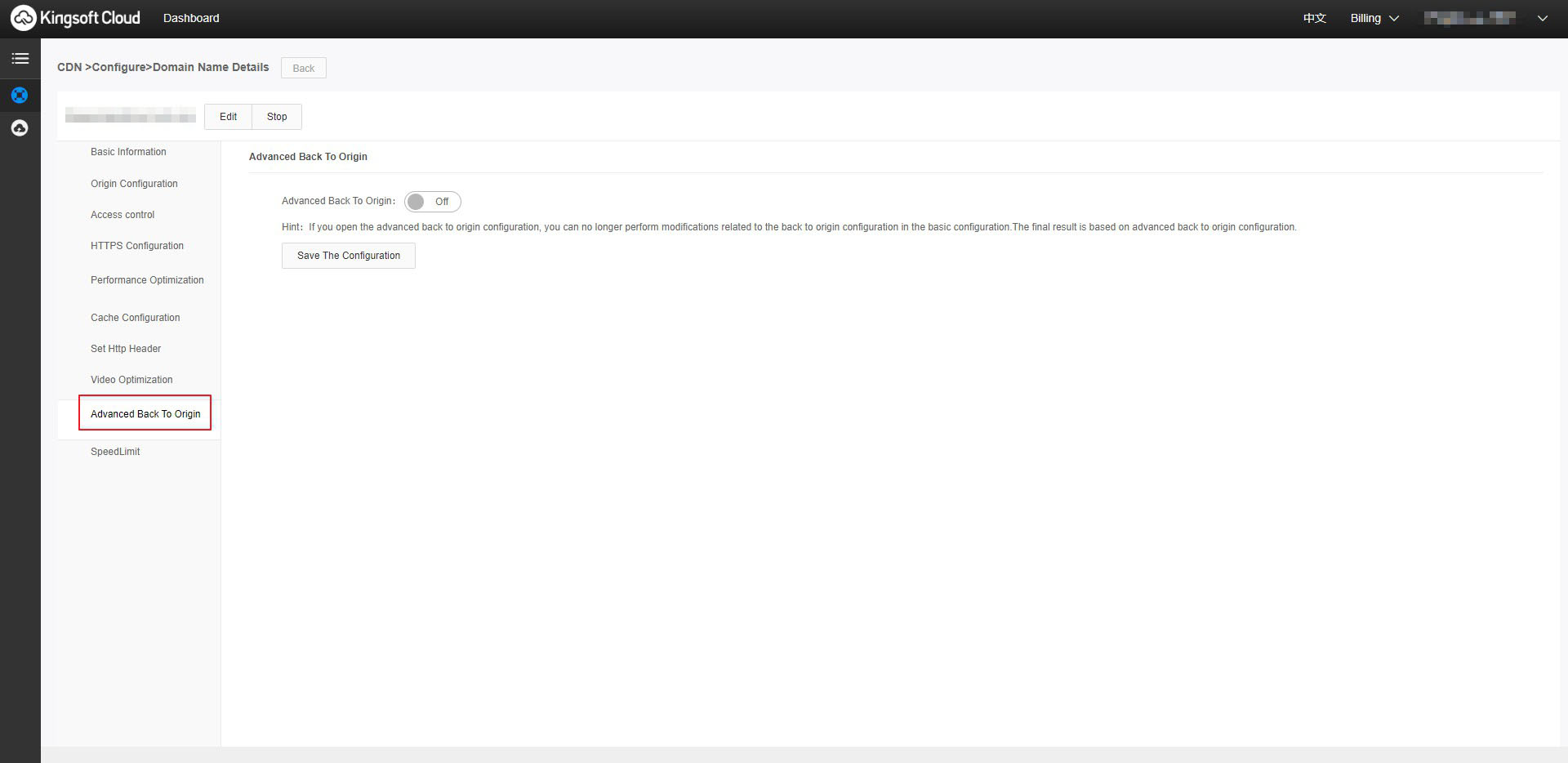

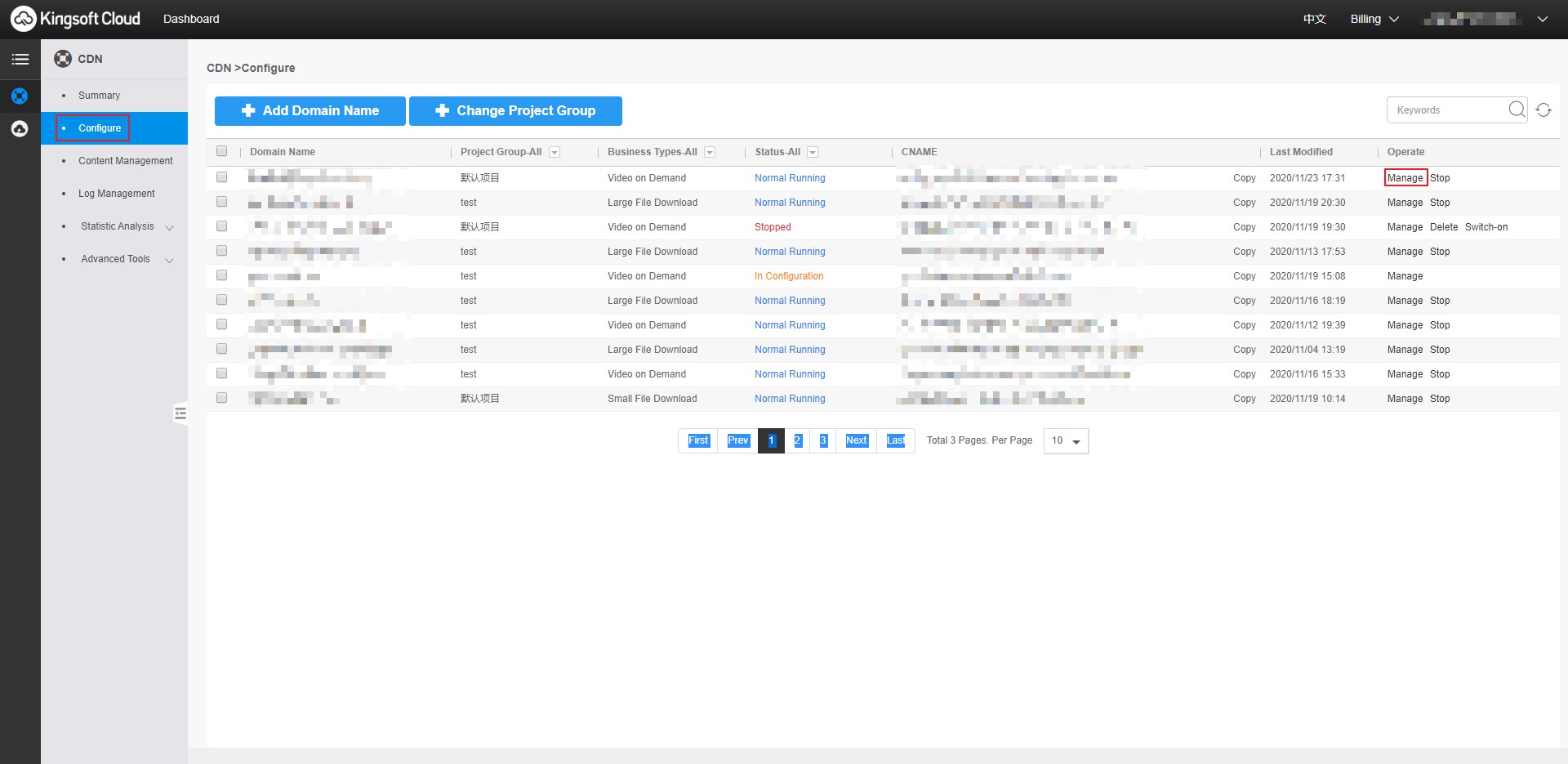

Click Configure in the left navigation pane, find the domain name that you want to configure, and then click Manage in the Operate column. On the page that appears, click Advanced Back to Origin in the left navigation pane.

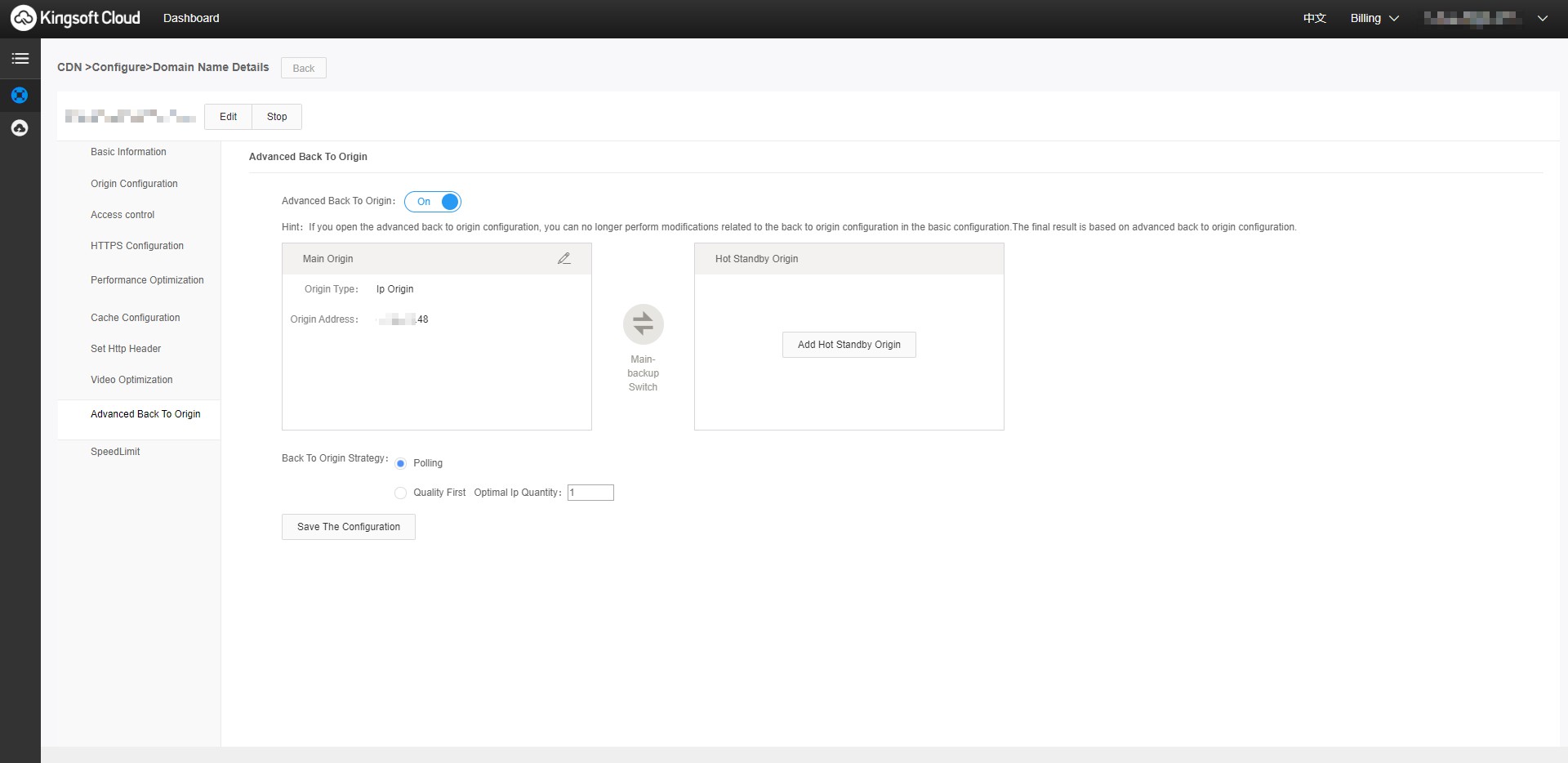

Turn on Advanced Back to Origin to enable the advanced back-to-origin feature, and set the origin types and origin addresses of the main origin and hot standby origin.

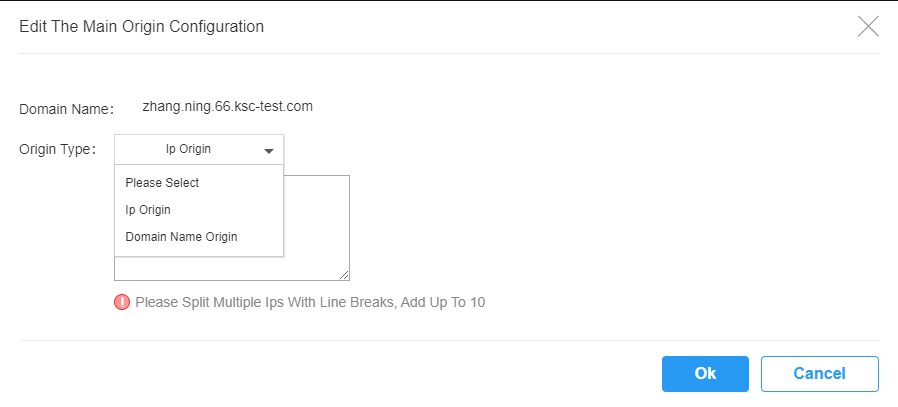

You can set Origin Type parameter to Ip Origin or Domain Name Origin.


Edit the back-to-origin configuration of the main origin and hot standby origin

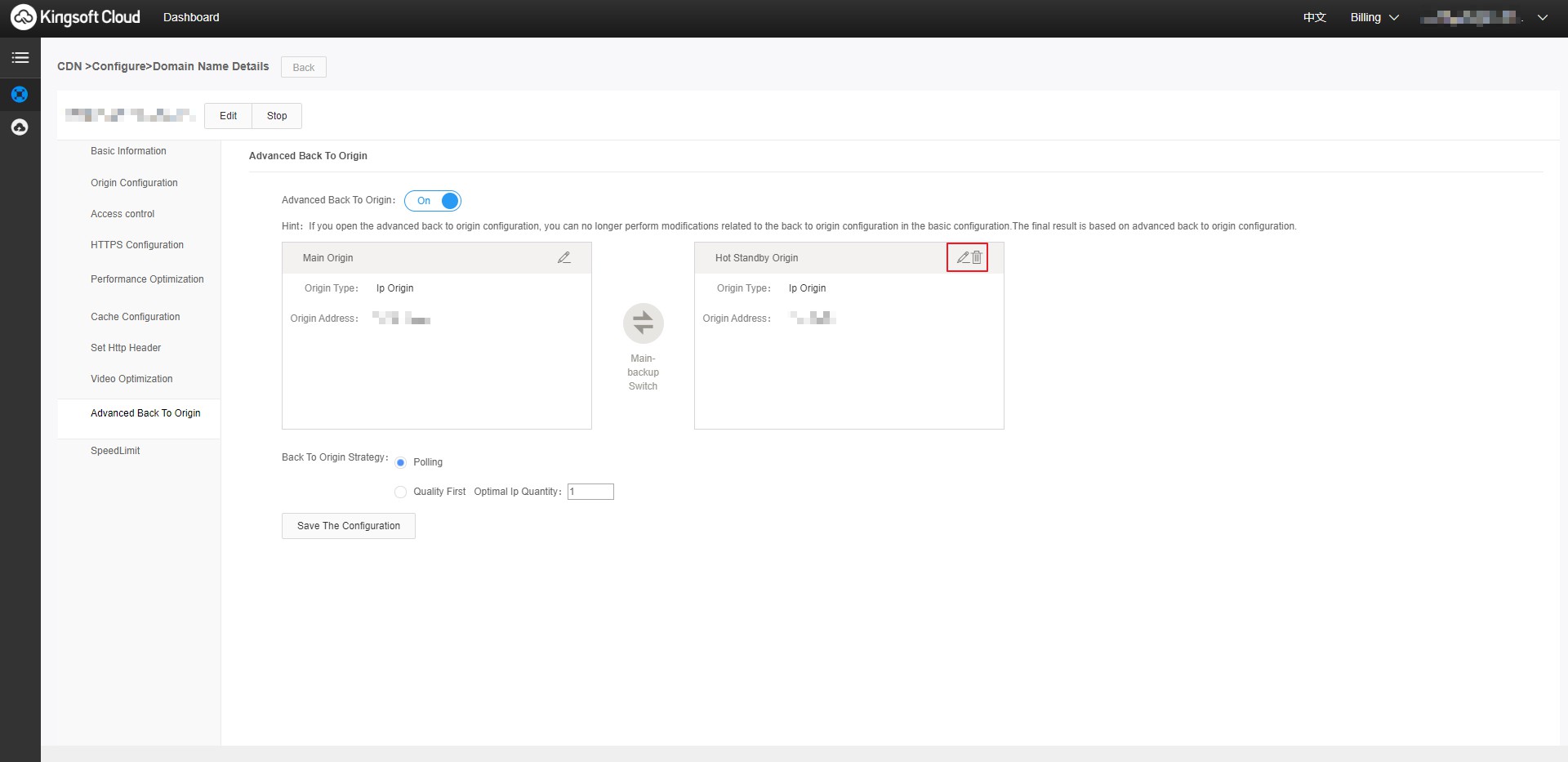

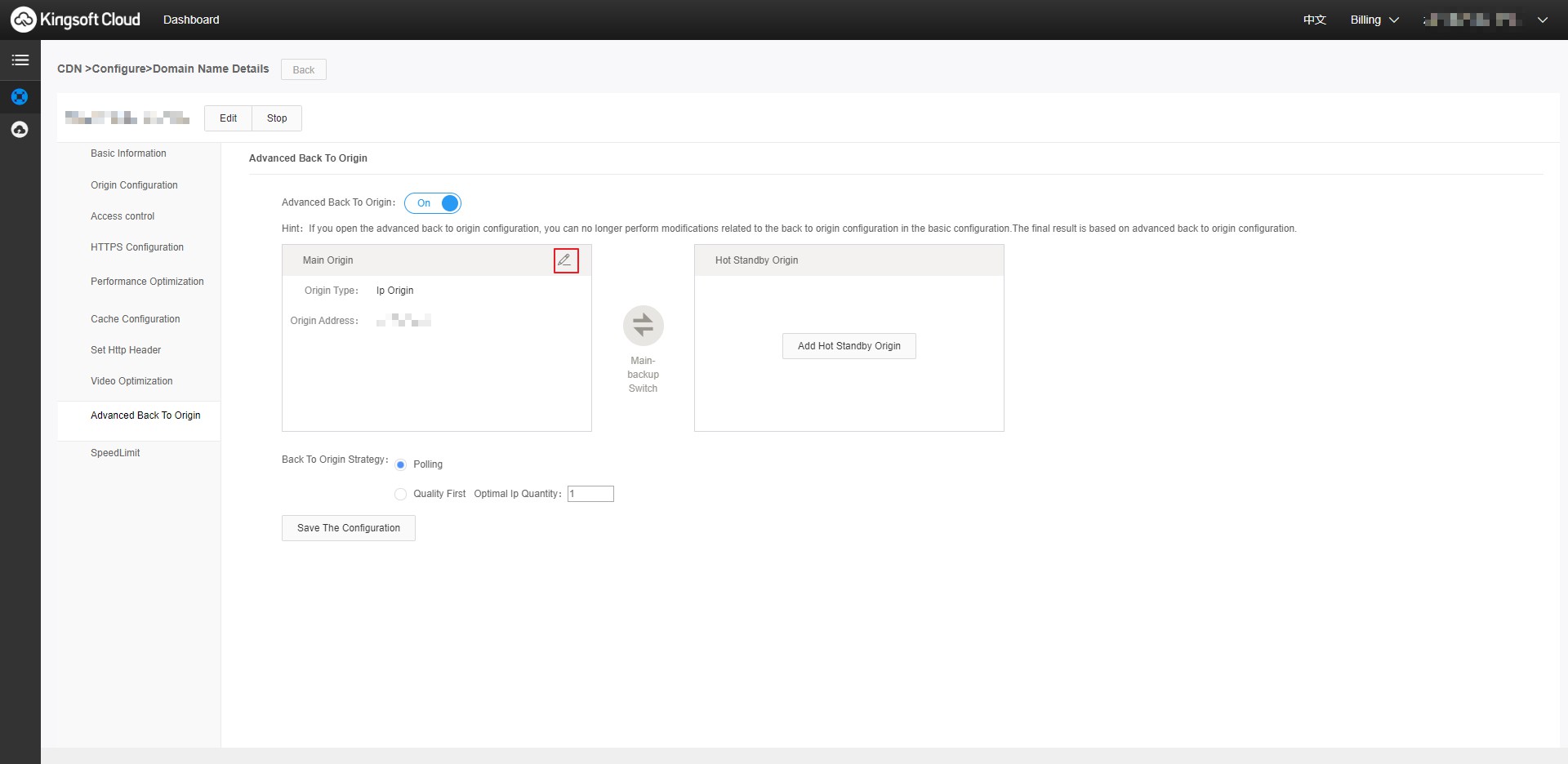

Click the Edit icon of the main origin or hot standby origin to edit the main origin or hot standby origin.



After you edit the origin configuration, click Ok.

Notes:

  • If you set the Origin Type parameter to Ip Origin, you can add at most 10 IP addresses. Enter an IP address in each line.
  • If you set the Origin Type parameter to Domain Name Origin, you must set an origin address different from the accelerated domain name.

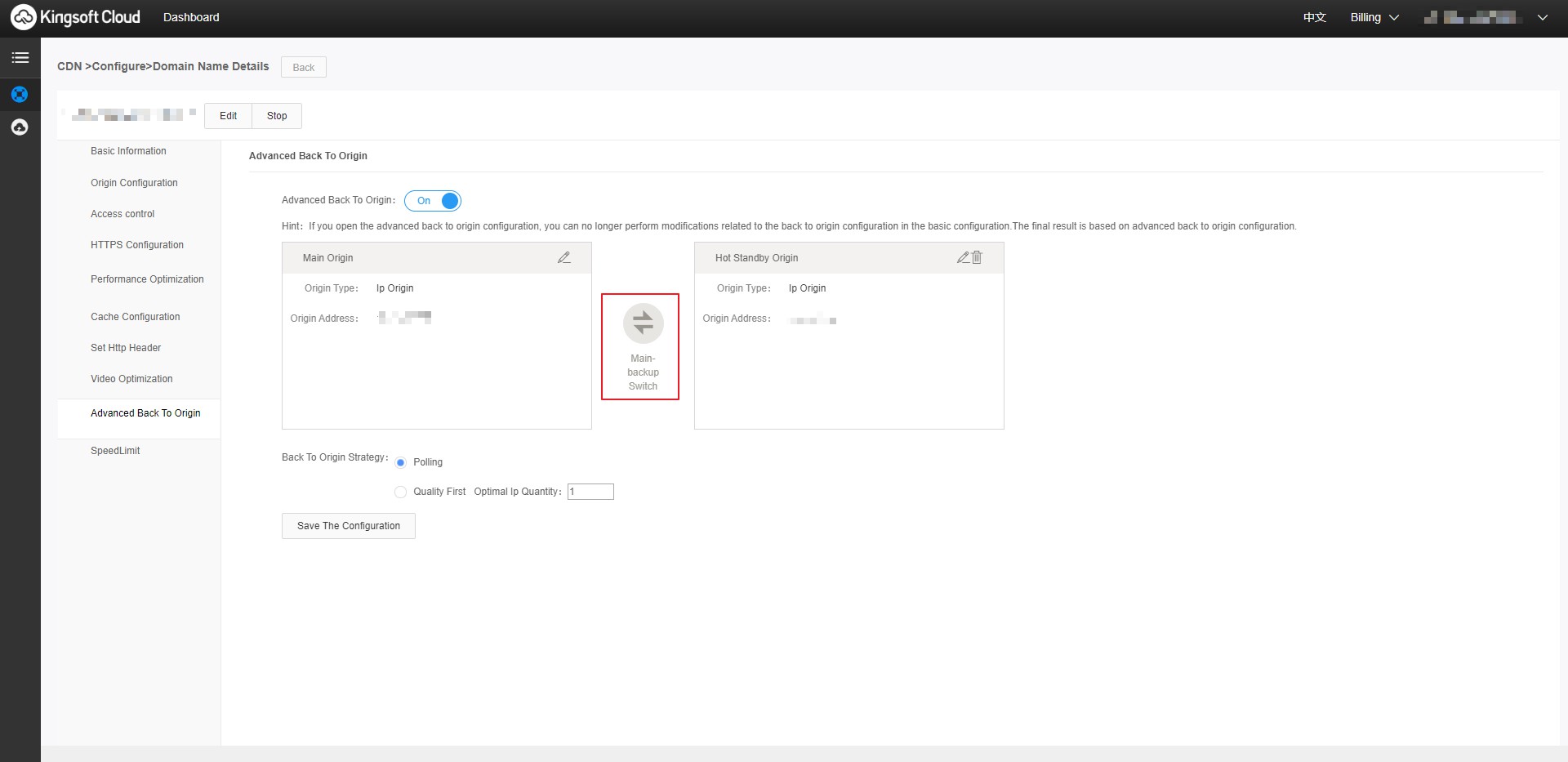

You can click Main-backup Switch to switch the roles of the main origin and hot standby origin.


Click Save The Configuration to validate the settings.
