Query statistics

Last updated:2020-11-26 19:52:05

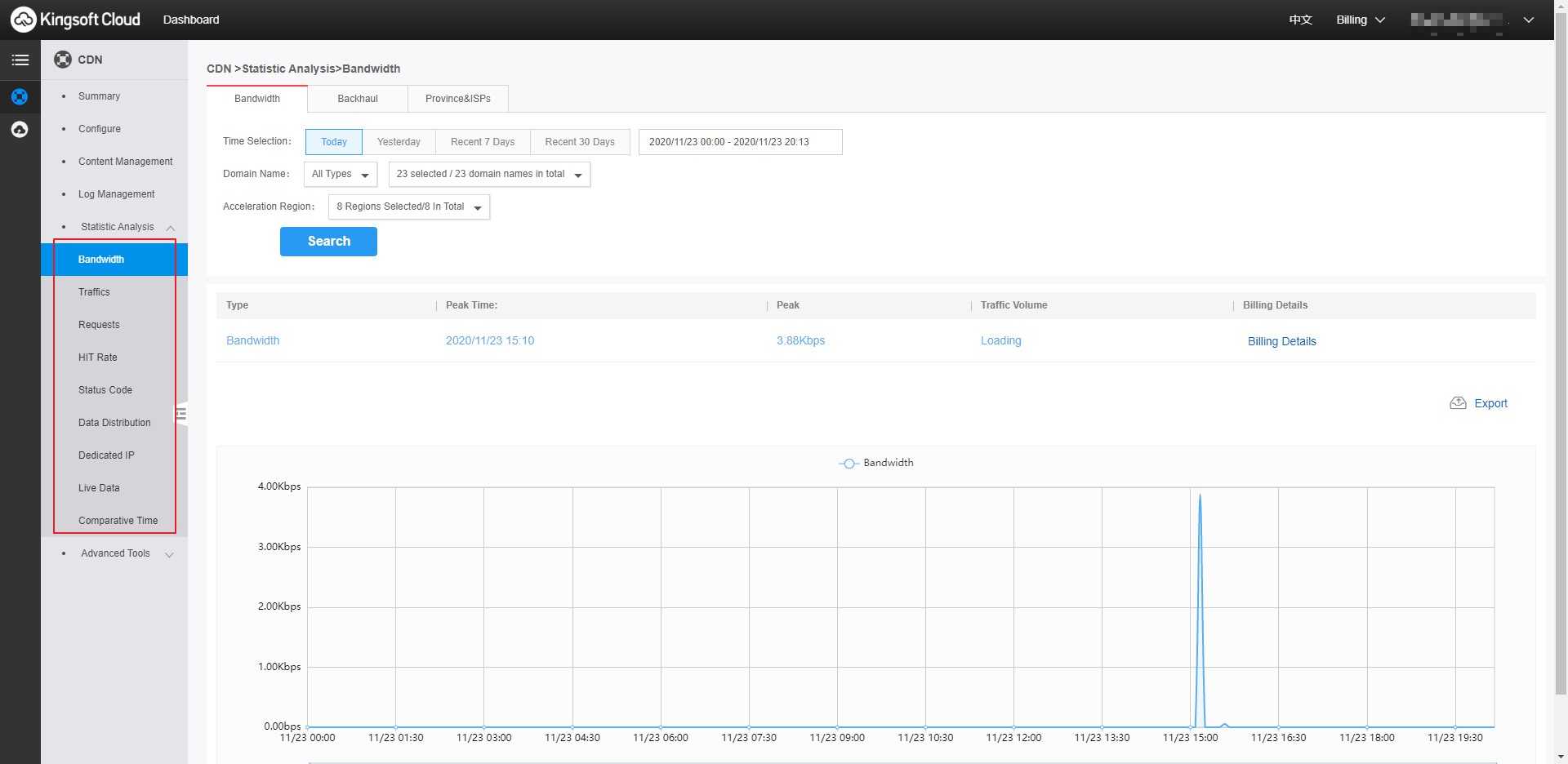

Log in to the Kingsoft Cloud CDN console, click Statistic Analysis in the left navigation pane, and then select a statistical item to view details.

The Kingsoft Cloud CDN console provides statistics for the following items:

  • Bandwidth: statistics data about service bandwidth, back-to-origin bandwidth, and bandwidth for provinces and Internet service providers (ISPs).
  • Traffic: statistics data about service traffic and top hostname list.
  • Request: statistics data about requests, URLs, and referers.
  • Hit rate: statistics data about hit rates, hit rate details, and proportions of the hit rates.
  • Status code: statistics data about different status codes, status code details, and ratio of the status codes.
  • Data distribution: statistics data about distribution of user access regions, traffic and access ratios of the regions, ISP ratio, and traffic and access ratios of the ISPs.
  • Unique IP address: statistics data about the number of requests from unique IP addresses for accessing resource files under the current domain name.
  • Live data: statistics data about online users and bandwidth by domain name or stream, and stream ranking by online users.
  • Period-on-period bandwidth comparison: period-on-period comparison data about service bandwidth, back-to-origin bandwidth, and bandwidth for provinces and ISPs.

Note:

  • You can export raw statistical data, for example, data about the service bandwidth, back-to-origin bandwidth, traffic, top hostname list, requests, hit rate, status codes, and data distribution.


Statistical details

Item Metric Time period
Bandwidth Service bandwidth, back-to-origin bandwidth, and bandwidth for provinces and ISPs Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Traffic Service traffic Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Traffic Top hostname list Recent 0.5 hours, recent 6 hours, recent 12 hours, today, and user-defined period up to 93 days
Request Requests Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Request URLs Recent 0.5 hours, recent 6 hours, recent 12 hours, today, and user-defined period up to 93 days
Hit rate Hit rate and hit rate details Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Status code Status code and status code details Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Status code Back-to-origin status code and back-to-origin status code details Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Data distribution Data distribution map and ISP ratio Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days
Unique IP address Unique IP addresses and top IP address list Recent 0.5 hours, recent 6 hours, recent 12 hours, today, and user-defined period up to 24 hours
Live data Online users and bandwidth by domain name or stream, and stream ranking by online users Recent 0.5 hours, recent 6 hours, recent 12 hours, today, and user-defined period up to 7 days
Period-on-period bandwidth comparison Service bandwidth, back-to-origin bandwidth, and bandwidth for provinces and ISPs Today, yesterday, recent 7 days, recent 30 days, and user-defined period up to 93 days

Units for bandwidth, traffic, and billing price

1. Bandwidth units: bit/s, Kbit/s, Mbit/s, Gbit/s, and Tbit/s

In the Kingsoft Cloud CDN console, bandwidth is measured in bit/s, Kbit/s, Mbit/s, Gbit/s, and Tbit/s, and is rounded to the ten-thousandths place.

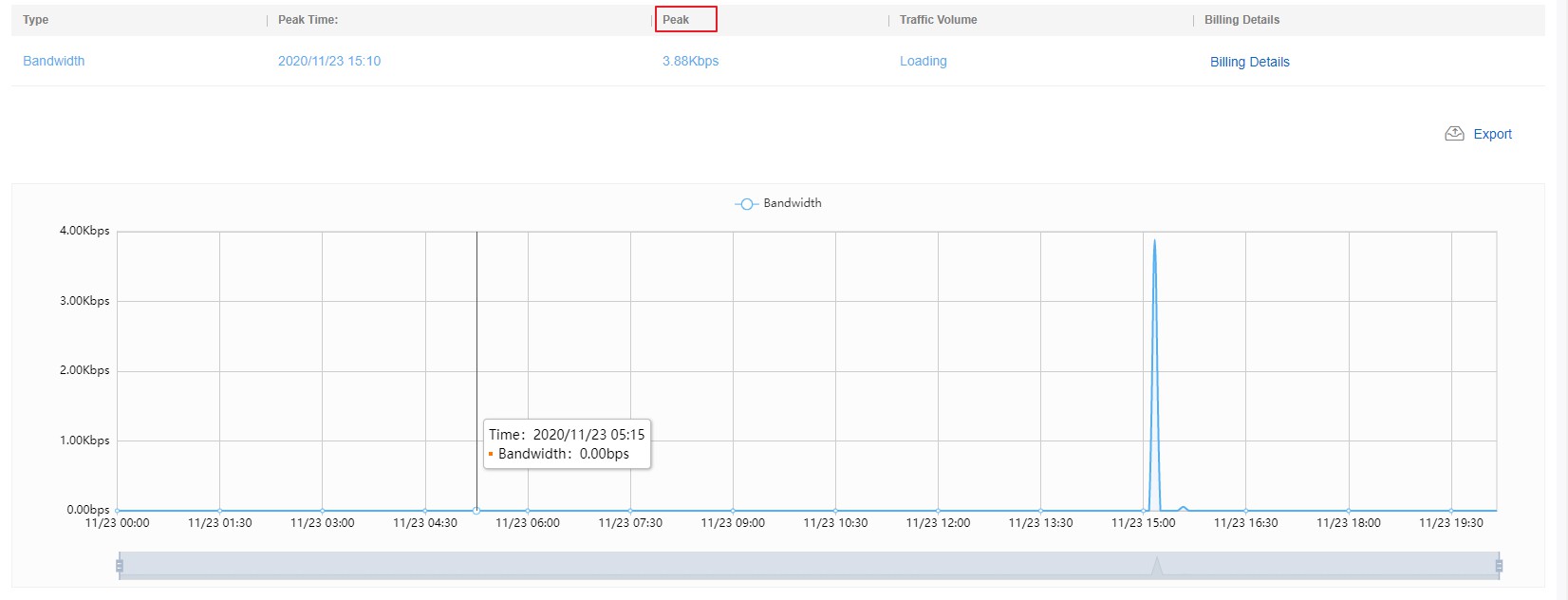

The following figure shows the statistic chart and peak for service bandwidth.

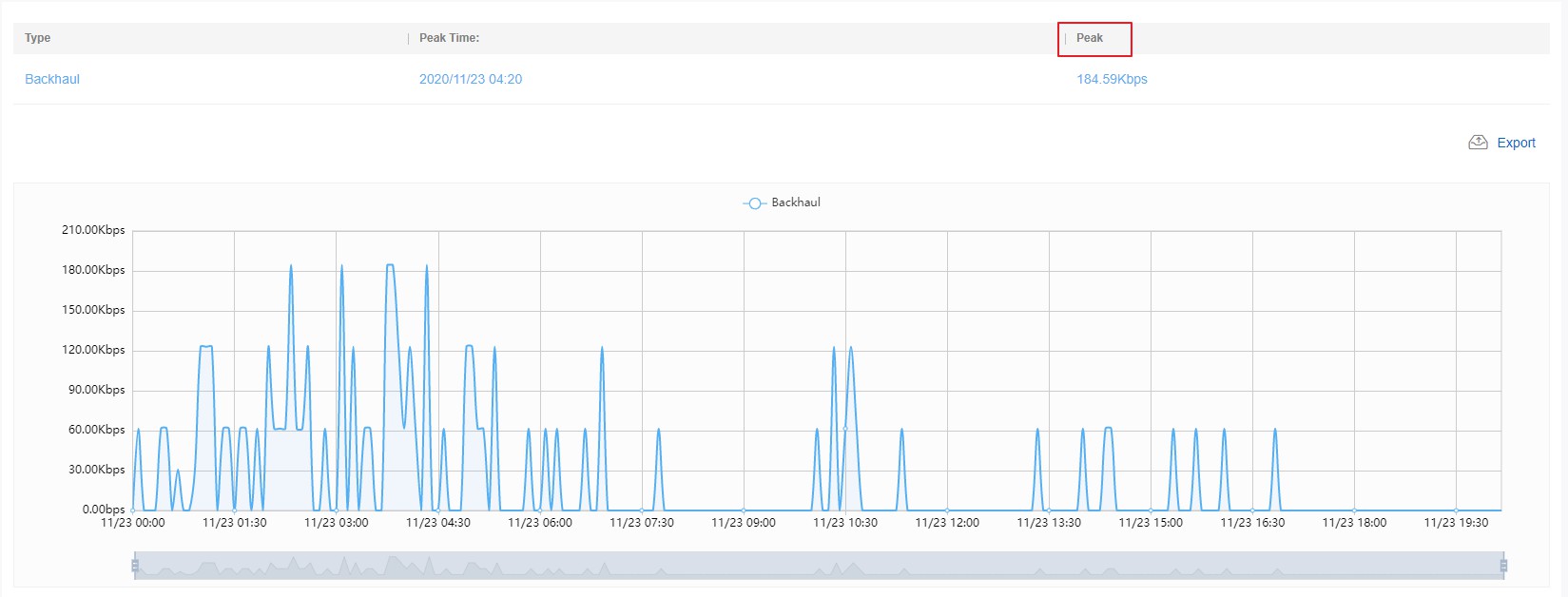

The following figure shows the statistic chart and peak for back-to-origin bandwidth.

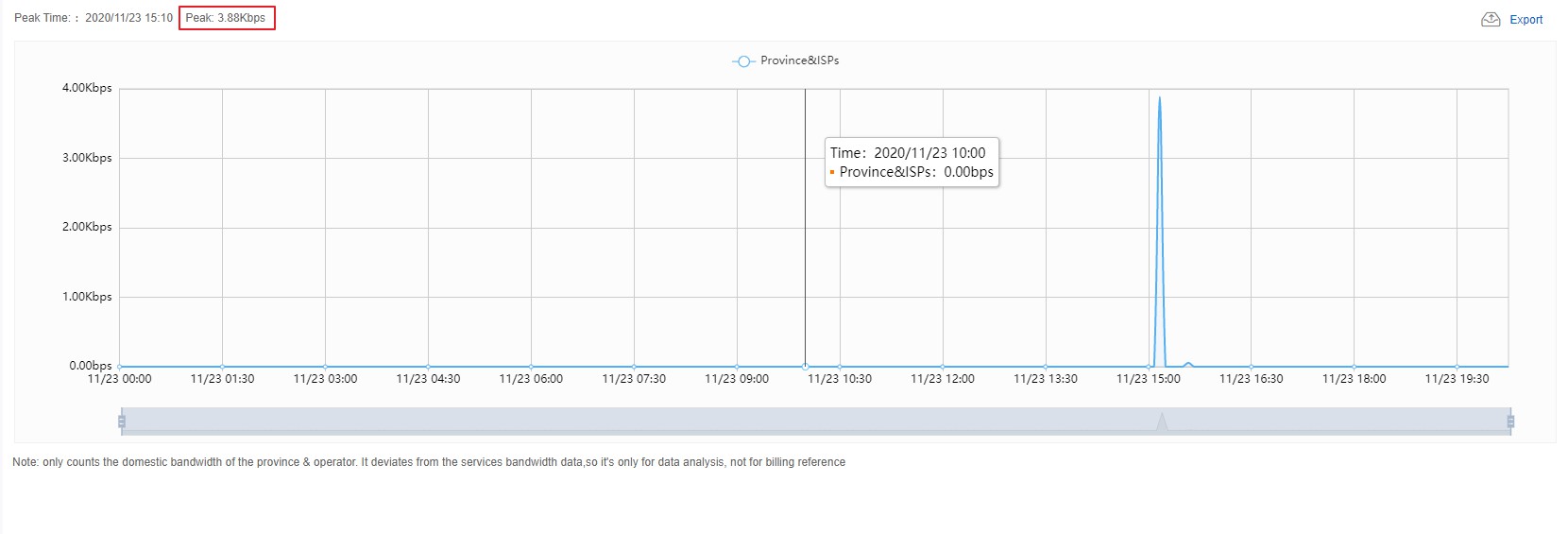

The following figure shows the statistic chart and peak for bandwidth for provinces and ISPs.


2. Traffic units: KB, MB, and GB

In the Kingsoft Cloud CDN console, traffic is measured KB, MB, and GB, and is rounded to the ten-thousandths place.

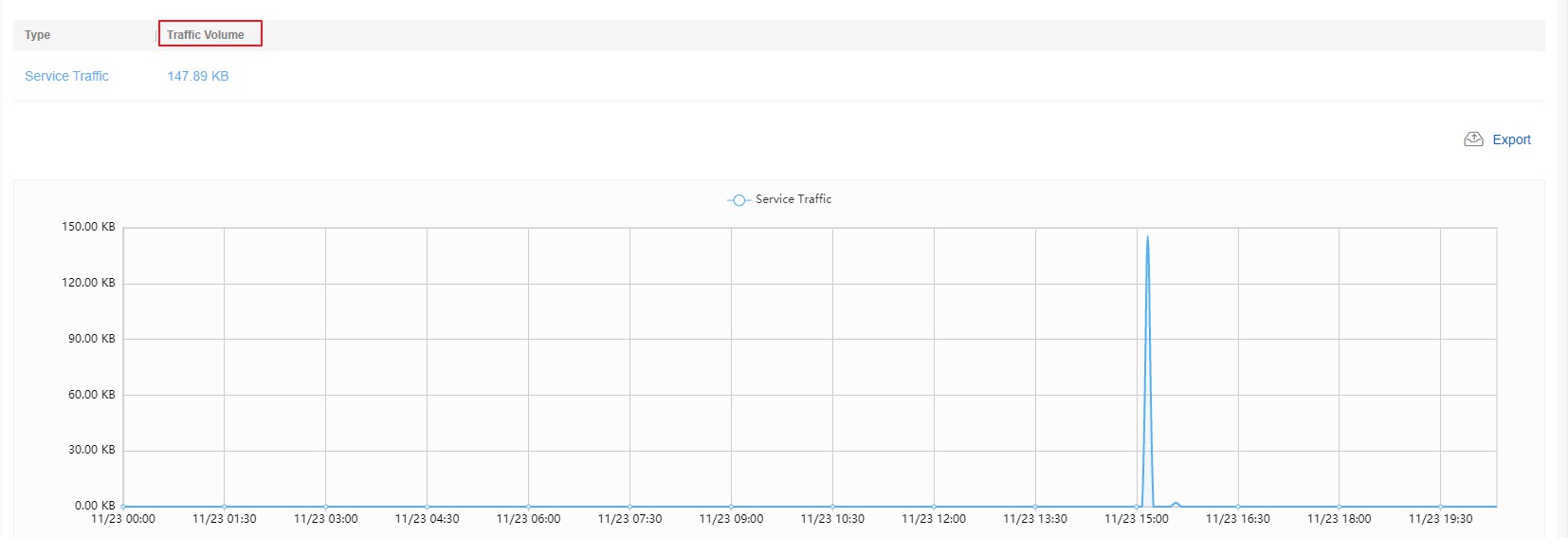

The following figure shows the service traffic.

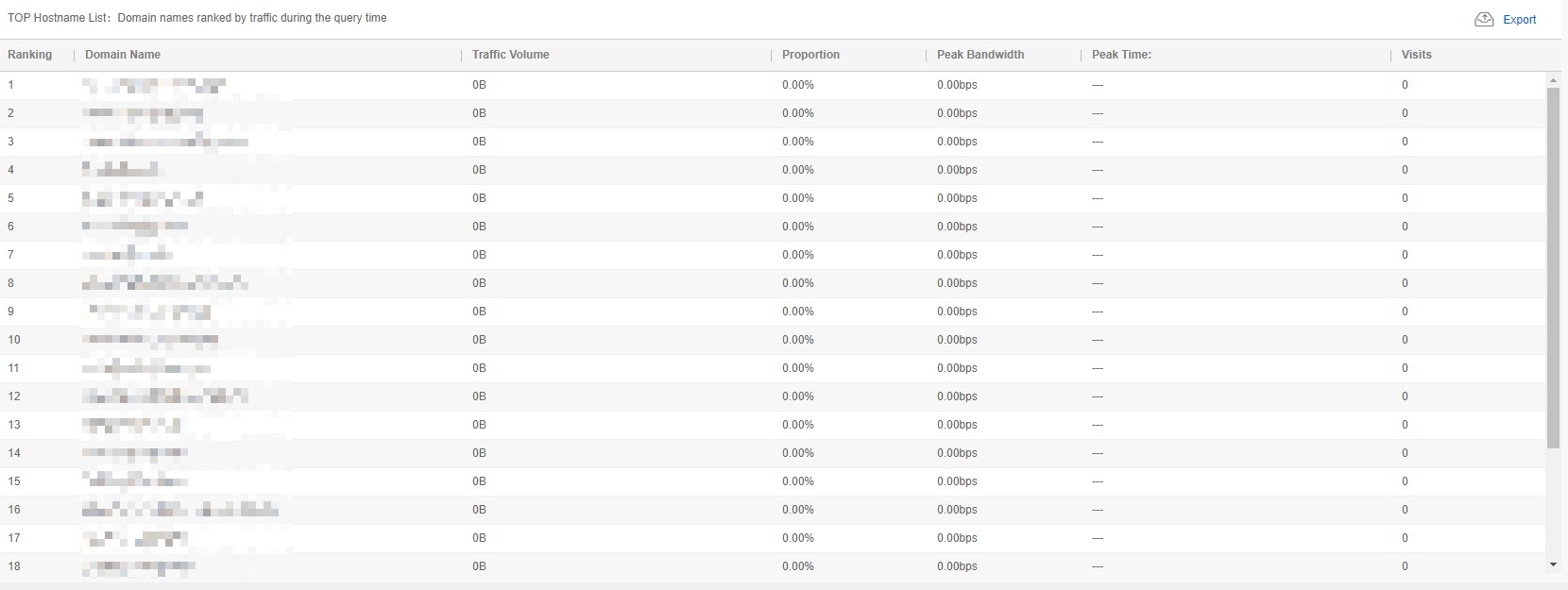

The following figure shows the top hostname list.


3. Billing units

Billing units:

  • Billing by bandwidth: The bandwidth for live streaming and download services is billed in Mbit/s, and is rounded to the ten-thousandths place.

  • Billing by traffic: The traffic is billed in GB, and is rounded to the ten-thousandths place.

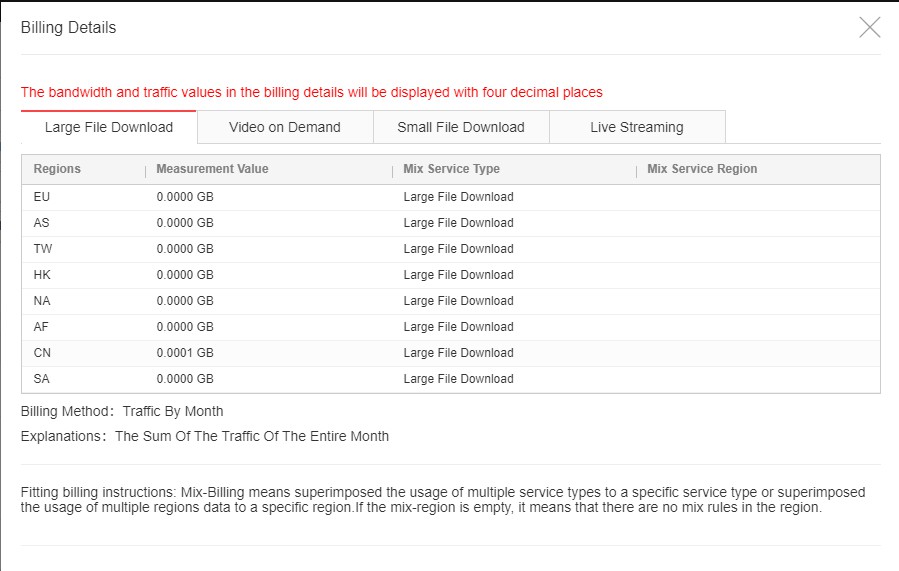

The following figure shows the billing details.
